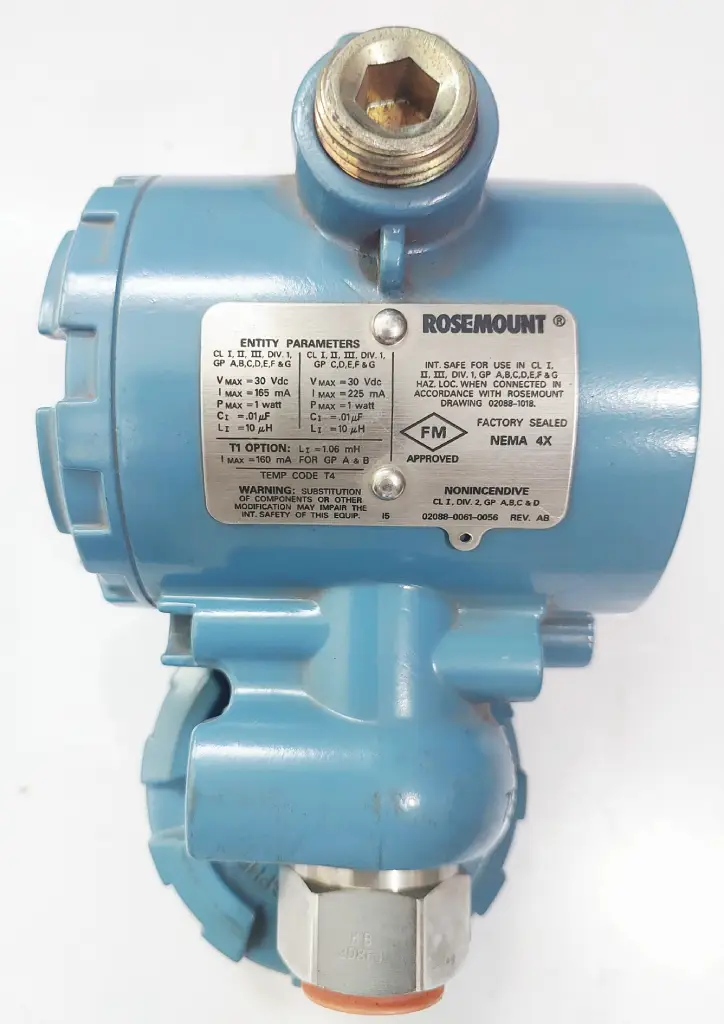

2088 SMART. Industrial Pressure Transmitter. Brand-ROUSEMOUNT. Supply-10.5-36vdc. Range-800 psi, 55bar.

Output-4-20ma. Condition- New, without Box.

2088 SMART Pressure Transmitter – Product Description

The 2088 SMART Pressure Transmitter is a high-performance, microprocessor-based pressure measurement solution designed for accurate, stable, and reliable operation in demanding industrial environments. Engineered with advanced sensing technology and intelligent signal processing, the 2088 transmitter delivers precise pressure data for process monitoring, control, and automation applications across multiple industries.

This smart pressure transmitter supports gauge, absolute, and differential pressure measurement, making it a versatile choice for fluid, gas, and steam applications. Its high-accuracy silicon sensor ensures excellent long-term stability and repeatability, minimizing calibration drift and reducing maintenance costs over time. The transmitter outputs a standard 4–20 mA signal with HART communication, allowing seamless integration with modern control systems such as PLCs, DCS, and SCADA platforms.

Built for harsh operating conditions, the 2088 SMART Pressure Transmitter features a rugged stainless-steel housing and strong resistance to vibration, temperature variation, and electromagnetic interference. Its compact design simplifies installation in tight spaces, while the smart electronics enable easy configuration, zero adjustment, and diagnostics through handheld communicators or control software.

The transmitter is widely used in oil & gas, chemical processing, power generation, water treatment, HVAC, food & beverage, and pharmaceutical industries. Typical applications include pipeline pressure monitoring, tank level measurement, pump protection, and process pressure control. With fast response time and reliable output, it ensures improved process efficiency, safety, and product quality.

Designed to meet international industrial standards, the 2088 SMART Pressure Transmitter combines precision, durability, and intelligent communication in one cost-effective solution. It is an ideal choice for engineers and system integrators seeking dependable pressure measurement with long-term operational confidence.

Technical Specification – 2088 SMART Pressure Transmitter

• Model: 2088 SMART Pressure Transmitter

• Measurement Type: Gauge, Absolute, Differential Pressure

• Measuring Range: −100 kPa to 60 MPa (model dependent)

• Output Signal: 4–20 mA DC with HART communication

• Accuracy: ±0.075% of full scale (typical)

• Stability: ±0.1% URL per year

• Response Time: ≤ 100 ms

• Power Supply: 12–45 V DC

• Load Resistance: 250–600 Ω (depending on supply voltage)

Mechanical & Material

• Process Connection: 1/4″ NPT, 1/2″ NPT, or optional flange

• Wetted Parts: Stainless Steel SS316

• Housing Material: Die-cast aluminum or stainless steel

• Mounting: Direct mount or bracket mount

Environmental

• Operating Temperature: −40°C to +85°C

• Ambient Temperature: −40°C to +85°C

• Ingress Protection: IP65 / IP67

• Vibration Resistance: Suitable for industrial environments

Electrical & Communication

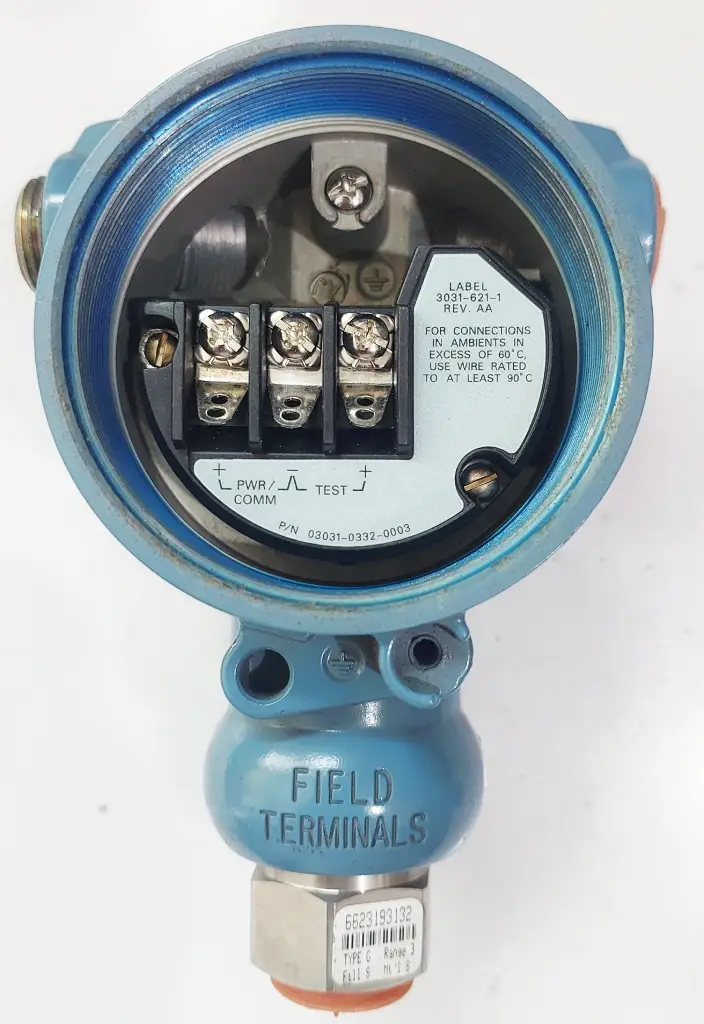

• Electrical Connection: M20 × 1.5 or 1/2″ NPT

• Display: Optional LCD with pressure and unit indication

• Configuration: HART communicator or control system software
