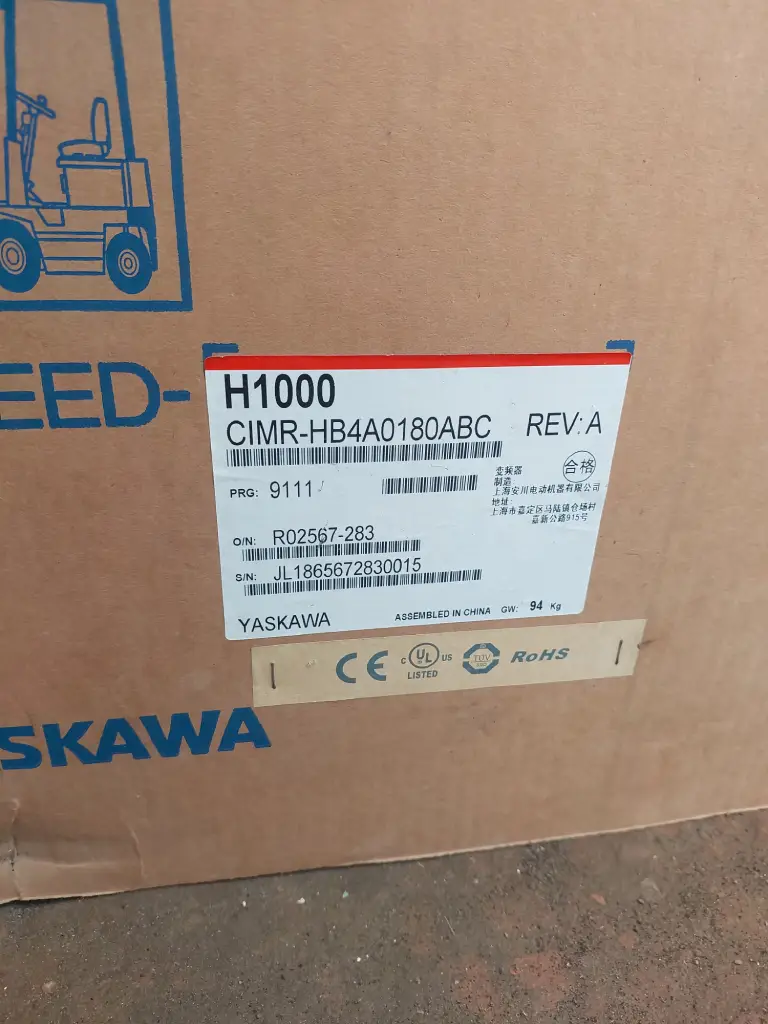

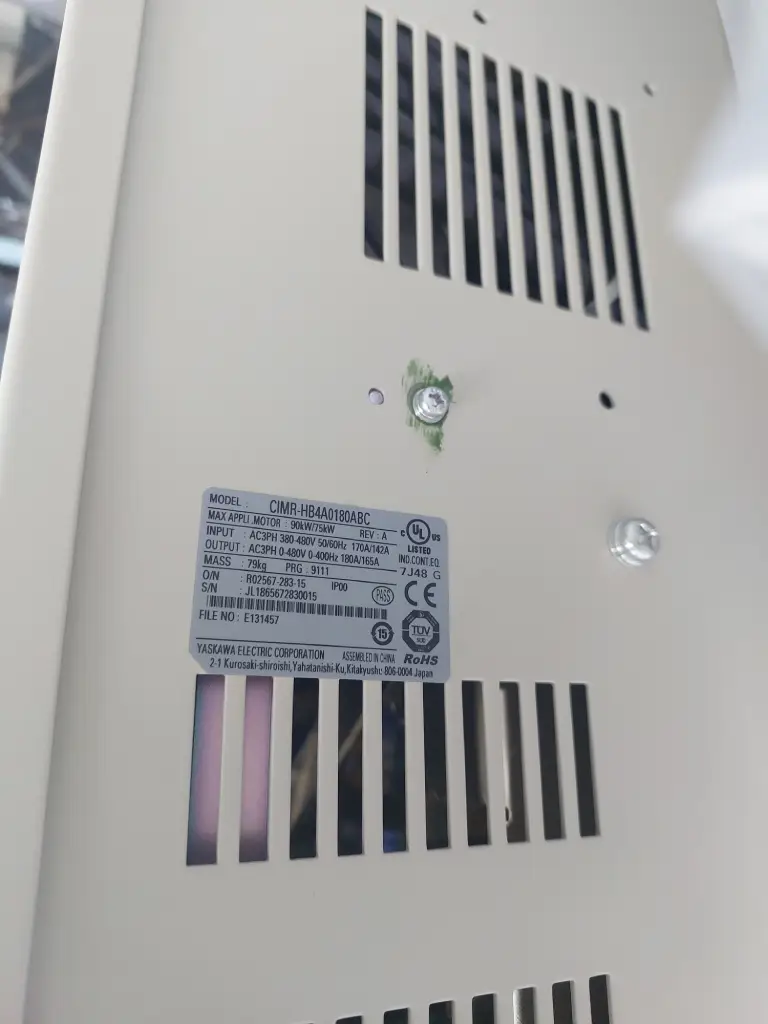

CIMR-HB4A0180ABC, Variable Frequency Drive , Brand-Yaskawa, Series-H1000, AC 3Ph 380-480V,50/60Hz, 180Amp,90KW/75KW, Condition-New.
CIMR-HB4A0180ABC Variable Frequency Drive (VFD) – Product Description
The CIMR-HB4A0180ABC Variable Frequency Drive is a high-performance AC motor controller designed to deliver precise speed regulation, energy savings, and reliable operation for industrial automation systems. Built for demanding environments, this advanced VFD provides accurate control of three-phase induction and vector motors used in pumps, fans, compressors, conveyors, mixers, and processing machinery. By adjusting output frequency and voltage according to load requirements, the drive significantly reduces mechanical stress, improves process stability, and lowers electricity consumption.
Engineered with modern vector control technology, the CIMR-HB4A0180ABC offers smooth torque response even at low speeds, ensuring consistent performance in applications requiring high starting torque. Its intelligent motor protection system monitors current, voltage, temperature, overload, and phase conditions, helping prevent downtime and extending motor life. The integrated PID control allows direct process control for pressure, flow, and level systems without additional controllers, making it ideal for HVAC and water management installations.
The drive features a user-friendly digital keypad with clear parameter navigation, enabling fast commissioning and simple adjustments. Multiple communication and control options such as analog inputs, digital I/O, and industrial communication compatibility allow seamless integration into PLC-based automation networks. Built-in acceleration and deceleration control also protects mechanical components by eliminating sudden starts and stops.
Designed for continuous industrial duty, the CIMR-HB4A0180ABC provides stable operation under fluctuating load conditions while maintaining high efficiency. Its compact design simplifies panel installation and reduces cabinet space requirements. With energy optimization functions, automatic torque boost, and protective diagnostics, the drive enhances productivity while lowering operational costs.
Overall, the CIMR-HB4A0180ABC VFD is a dependable motor control solution for factories, processing plants, water treatment facilities, and building automation systems seeking efficient, flexible, and long-lasting performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CIMR-HB4A0180ABC |
| Product Type | Variable Frequency Drive (VFD) |
| Control Method | Vector Control / V/f Control |
| Input Phase | Three-phase |
| Rated Input Voltage | 380 – 480 VAC (50/60 Hz) |
| Output Voltage | 0 – Input Voltage |
| Output Frequency Range | 0 – 400 Hz |
| Motor Compatibility | 3-phase AC Induction Motor / Vector Motor |
| Overload Capacity | 150% for 60 seconds (typical) |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Overheat, Phase Loss, Motor Overload |
| Speed Control Accuracy | ±0.5% (vector mode typical) |
| Built-in PID Control | Yes |
| Acceleration/Deceleration Time | Programmable |
| Cooling Method | Forced air cooling |
| Installation | Panel-mounted (Indoor) |
| Operating Temperature | Approx. −10°C to +50°C |
| Protection Class | IP20 (typical enclosure) |
| Communication | Analog input, digital I/O, optional industrial communication modules |
| Keypad | Detachable digital operator panel |
Catalogue Data (Website SEO Table)
| Feature | Details |
|---|---|
| Product Name | CIMR-HB4A0180ABC Variable Frequency Drive |
| Brand Category | Industrial Motor Drive Controller |
| Application | Pumps, Fans, Compressors, Conveyors, HVAC Systems |
| Function | Motor Speed Control & Energy Saving |
| Efficiency Benefit | Reduces power consumption and mechanical wear |
| Control Capability | Precision torque and speed regulation |
| Safety | Built-in motor and drive protection |
| Integration | Compatible with PLC automation systems |
| Installation Area | Industrial control panels and machinery cabinets |
| Keywords | VFD drive, AC drive, motor speed controller, industrial inverter, variable frequency drive controller |
