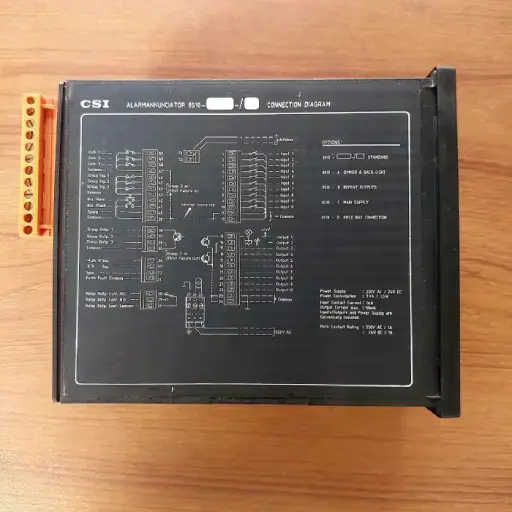

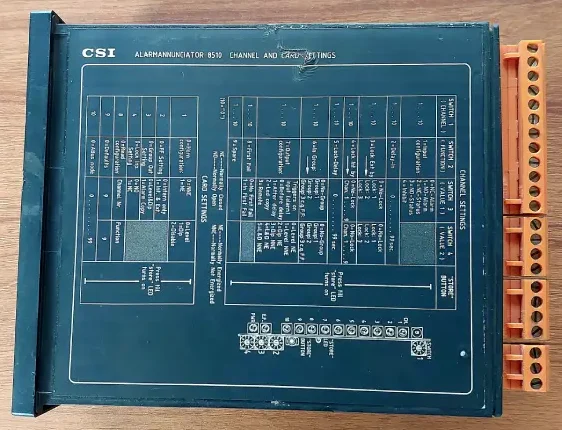

CSI8510 Alarm Monitoring Unit
The CSI8510 Alarm Monitoring Unit is a compact and dependable industrial alarm supervision device designed to centralize status monitoring and fault indication across machines, panels, and process systems. Powered by a stable 24VDC supply, the unit continuously supervises up to 10 digital input channels, making it ideal for applications such as fire and safety panels, generator systems, water treatment plants, manufacturing lines, substations, and building automation. Each input can receive signals from limit switches, protection relays, float switches, pressure switches, or any dry contact field device, allowing operators to instantly identify abnormal operating conditions.
The CSI8510 improves plant reliability by collecting multiple alarm points into a single monitoring interface. Once any connected device changes state, the controller activates its relay output, enabling sirens, hooters, signal lamps, SCADA systems, or PLC interlocks to respond immediately. This fast reaction helps prevent equipment damage, reduces downtime, and enhances operator safety. Clear LED indicators on the front panel provide visual status of each input channel for quick troubleshooting and maintenance.
Designed for industrial environments, the unit features a robust housing suitable for control panel mounting and long-term continuous operation. Low power consumption ensures efficient performance in control rooms, substations, and automation cabinets. Its simple wiring and configuration make installation easy for technicians without complex programming. The CSI8510 can operate as a standalone alarm annunciator or as a support module within a PLC or DCS control architecture.
Whether monitoring pump failures, motor overload trips, breaker status, tank levels, or emergency conditions, the CSI8510 delivers dependable real-time alarm indication. It is an ideal solution for engineers and panel builders seeking a reliable, cost-effective multi-channel alarm monitoring system that enhances operational awareness and plant safety.
Technical Specification
| Parameter | Specification |
|---|---|
| Model | CSI8510 |
| Product Type | Alarm Monitoring Unit / Alarm Annunciator |
| Supply Voltage | 24V DC (±10%) |
| Power Consumption | ≤ 5W (typical) |
| Number of Inputs | 10 Digital Inputs |
| Input Type | Dry Contact / Potential-free contact |
| Input Signal | ON/OFF Status Detection |
| Output Type | Relay Output |
| Relay Contact Rating | 5A @ 250VAC / 5A @ 30VDC |
| Indication | Individual LED indication for each input |
| Response Time | < 100 ms |
| Mounting | Panel / DIN rail mounting |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -10°C to 70°C |
| Humidity | Up to 90% RH (non-condensing) |
| Enclosure Material | Industrial ABS / Polycarbonate |
| Protection | Reverse polarity protection |
| Application | Industrial automation, safety monitoring, process alarm indication |
Catalogue Information Table
| Item | Description |
|---|---|
| Product Name | CSI8510 Alarm Monitoring Unit |
| Power Supply | 24VDC |
| Inputs | 10 Digital Alarm Inputs |
| Outputs | 1 Relay Alarm Output |
| Function | Multi-channel alarm detection and annunciation |
| Compatible Devices | PLC, SCADA, Fire Panels, Switches, Sensors |
| Installation | Control panel mounted |
| Industrial Use | Factory automation, substations, pump stations, water treatment |
| Key Features | Fast alarm response, LED indication, simple wiring, reliable operation |
