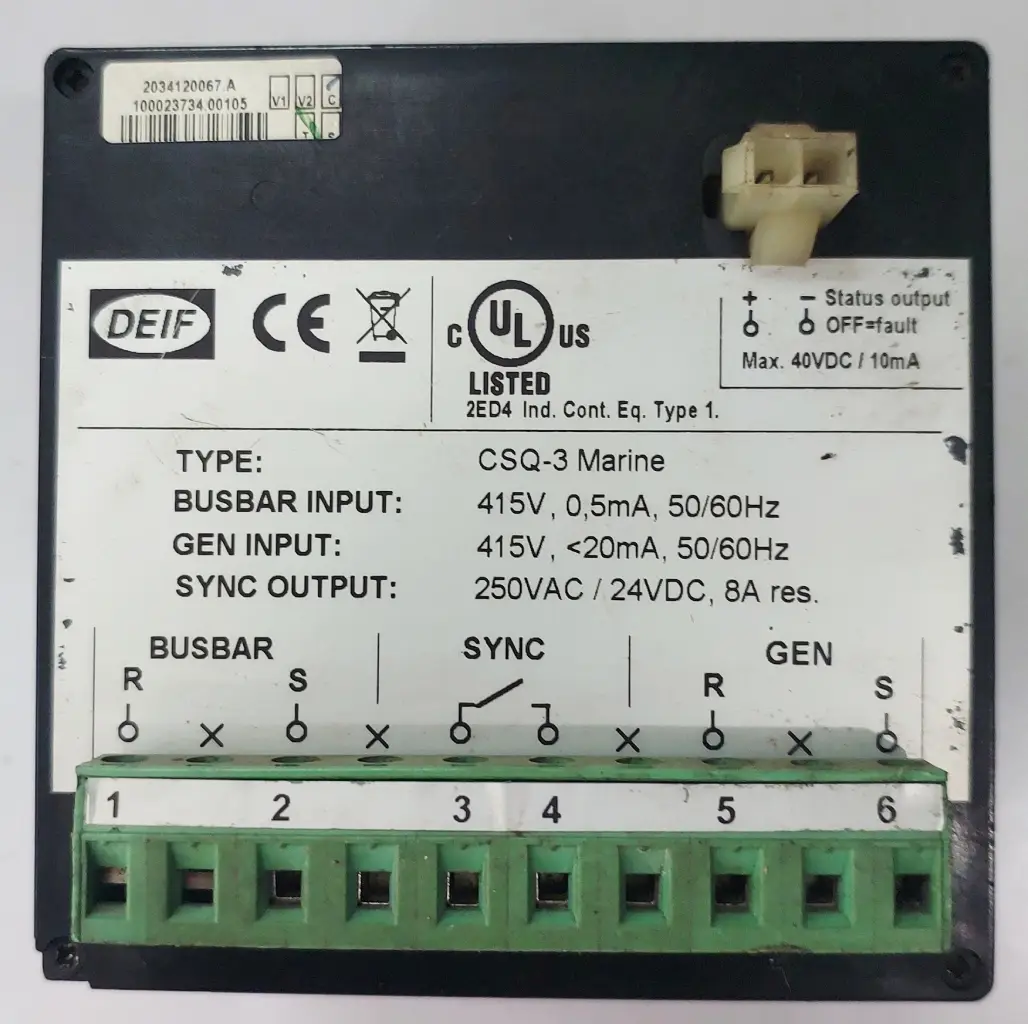

CSQ-3 Multi-Function Synchroscope for precise generator and grid synchronization. Accurate phase, voltage, and frequency matching for power plants, substations, and generator panels.. Used, Fresh & good condition.
CSQ-3 Multi-Function Synchroscope – Product Description.
This Multi-Function Synchroscope is a high-precision instrument designed for safe and reliable synchronization of AC generators with power grids or other generators. Widely used in power plants, substations, generator control panels, and industrial power systems, This is ensures accurate matching of voltage, frequency, and phase angle before breaker closing, helping to prevent system instability and equipment damage.
Engineered with advanced electronic circuitry, the CSQ-3 provides clear and stable indication of synchronization conditions. It allows operators to visually monitor phase sequence and phase difference, enabling smooth and controlled generator paralleling. Its multi-function capability eliminates the need for multiple separate instruments, reducing panel space, wiring complexity, and overall system cost.
The CSQ-3 synchroscope features a robust and durable design suitable for continuous operation in demanding industrial environments. High measurement accuracy and fast response time ensure dependable performance even under fluctuating load conditions. The clear analog or hybrid display (depending on configuration) improves readability and minimizes operator error during critical synchronization operations.
Designed for easy panel mounting, the CSQ-3 integrates seamlessly into both new installations and retrofit projects. Its compatibility with standard AC voltage and frequency ranges makes it ideal for diesel generator sets, marine power systems, renewable energy integration, and utility substations.
By ensuring precise synchronization, the CSQ-3 Multi-Function Synchroscope helps extend generator life, reduce mechanical stress, and improve overall power system reliability. It is an essential component for any application requiring safe, efficient, and professional generator paralleling and grid synchronization.
Technical Specifications – CSQ-3 Multi-Function Synchroscope
| Parameter | Specification |
|---|---|
| Model | CSQ-3 |
| Product Type | Multi-Function Synchroscope |
| Function | Generator to Generator / Generator to Grid Synchronization |
| Measured Parameters | Phase Angle, Frequency Difference, Voltage Difference |
| Rated Voltage | AC 100–450 V |
| Rated Frequency | 50 Hz / 60 Hz |
| Display Type | Analog Dial |
| Measurement Accuracy | High Accuracy Electronic Measurement |
| Response Time | Fast Response |
| Mounting Type | Panel Mount |
| Operating Temperature | -10°C to +55°C |
| Relative Humidity | ≤ 95% RH (Non-condensing) |
| Front Protection | IP54 |
| Power Consumption | Low Power Consumption |
| Typical Applications | Power Plants, Substations, Generator Control Panels, Industrial & Marine Power Systems |
