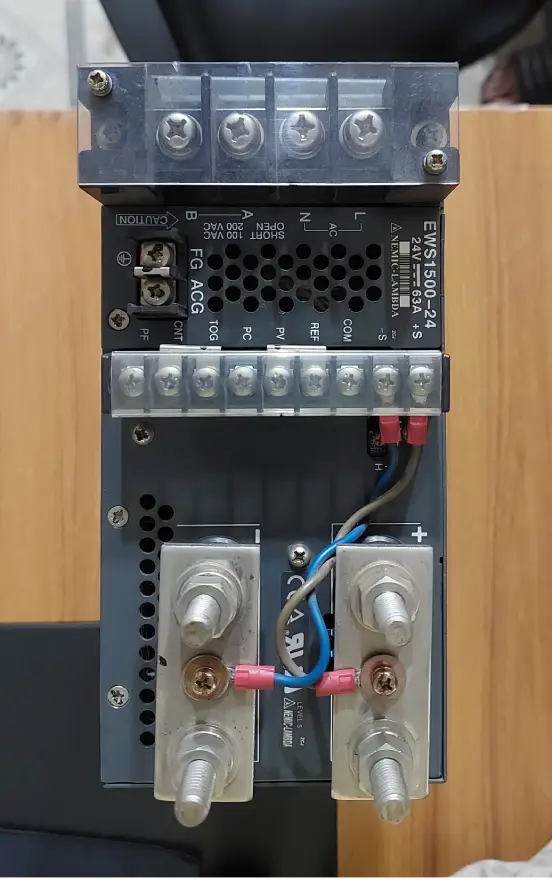

EWS1500-24,AC to DC Power supply. input-100-120v: 32A, 200-240v:16A.50/60Hz.2055 watts.Output-24vDC 63A.
Made in Malaysia. Condition-USDE. Fresh & Good. Price- Negotiable.
EWS1500-24 AC to DC Power Supply – Product Description
The EWS1500-24 AC to DC Power Supply is a high-performance industrial switching power supply engineered to deliver stable and efficient 24V DC output for demanding electrical and automation applications. Designed for continuous operation, this unit converts wide-range AC input voltage into a regulated DC output, ensuring reliable performance for PLC systems, control panels, automation equipment, industrial machinery, LED lighting networks, telecom devices, and security systems.
Built with advanced switching technology, the EWS1500-24 provides high energy efficiency while minimizing heat generation and power loss. The internal circuitry includes precision voltage regulation and low ripple output, which protects sensitive electronic components and improves the lifespan of connected equipment. Its rugged metal enclosure enhances heat dissipation and provides excellent protection in harsh industrial environments.
For safety and durability, the power supply integrates multiple protection features including overload protection, over-voltage protection, over-temperature protection, and short-circuit protection. These protections automatically safeguard both the power supply and connected devices, reducing downtime and maintenance costs.
The compact form factor allows easy installation inside electrical cabinets or distribution panels. Clearly marked terminals and adjustable output voltage trim enable convenient setup and accurate voltage control. The built-in cooling fan and optimized airflow design maintain stable operation even under full load conditions.
Whether used in factory automation, robotics, CNC machines, access control systems, or communication equipment, the EWS1500-24 offers dependable performance, stable output, and long service life. Its combination of efficiency, reliability, and industrial-grade construction makes it an ideal choice for professional engineers, panel builders, and system integrators who require consistent 24V DC power.
Technical Specifications – EWS1500-24
| Parameter | Specification |
|---|---|
| Model | EWS1500-24 |
| Product Type | Industrial Switching Power Supply (AC to DC) |
| Output Voltage | 24V DC |
| Rated Output Current | 62.5A |
| Rated Output Power | 1500W |
| Output Voltage Adjustment | ±10% adjustable (approx. 21.6V – 26.4V) |
| Input Voltage Range | 180 – 264V AC |
| Input Frequency | 47 – 63 Hz |
| Efficiency | Up to 88 – 92% (typical) |
| Ripple & Noise | ≤ 200mVp-p |
| Voltage Regulation | ±1% |
| Load Regulation | ±1% |
| Inrush Current | ≤ 40A (typical) |
| Protection Functions | Over-voltage, Over-load, Short-circuit, Over-temperature |
| Cooling Method | Built-in forced air cooling fan |
| Indicator | LED power indicator |
| Operating Temperature | −10°C to +50°C |
| Storage Temperature | −20°C to +70°C |
| Humidity | 20% – 90% RH (non-condensing) |
| Mounting Type | Panel / Cabinet Mount |
| Enclosure Material | Industrial grade metal housing |
| Insulation Resistance | ≥ 100MΩ / 500V DC |
| Withstand Voltage | 1500V AC / 1 minute |
| Approx. Dimensions | 295 × 140 × 85 mm |
| Approx. Weight | 2.5 – 3.0 kg |
| Applications | PLC panels, CCTV systems, LED lighting, Telecom equipment, Automation machinery |
