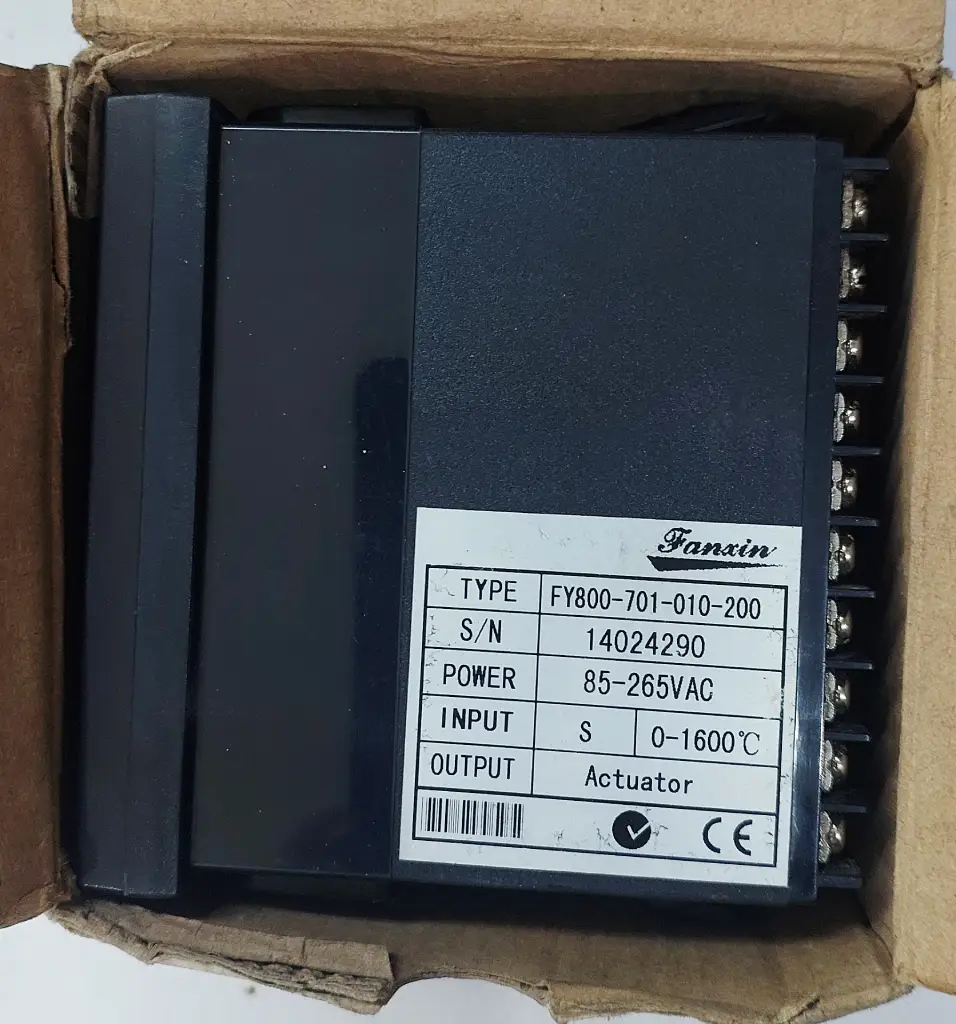

FY800-701-010-200 PID CONTROLLER. Supply-85-265vac. Input-4-20ma. Output-Actuator. Made in-Taiwan.
Condition- New. Price-Negotiable.
FY800-701-010-200 PID Controller
This PID Controller is a high-performance, precision temperature and process control solution designed for industrial, laboratory, and automation applications. Engineered for reliability and accuracy, this controller provides robust PID (Proportional-Integral-Derivative) control with fast response and minimal overshoot, ensuring consistent process stability. Its intuitive interface allows operators to easily configure setpoints, control modes, and alarms, reducing setup time and enhancing operational efficiency.
Built with advanced digital circuitry, the FY800-701-010-200 offers precise temperature management for heaters, ovens, chillers, and other thermal processes. Its universal input compatibility supports a wide range of sensors, including thermocouples (K, J, T, E) and RTDs (Pt100), making it suitable for diverse industrial applications. The controller’s output can drive relays, SSRs, or analog signals for proportional control, enabling seamless integration into existing automation systems.
The controller also features configurable alarms, self-tuning PID functionality, and multiple display modes, allowing operators to monitor process variables, setpoints, and control outputs at a glance. Its durable construction ensures long-term performance even in demanding industrial environments. Compact in size, the FY800-701-010-200 PID Controller is easy to install on control panels and fits standard DIN cutouts, making it a versatile choice for process engineers and system integrators.
With reliable performance, flexible compatibility, and user-friendly operation, the PID Controller is an ideal solution for industries requiring precise process control, including plastics, food processing, chemical manufacturing, and HVAC systems. Enhance your process stability, efficiency, and safety with this advanced PID controller.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | FY800-701-010-200 |
| Control Type | PID (Proportional-Integral-Derivative) |
| Input Type | Thermocouple (K, J, T, E), RTD (Pt100) |
| Input Accuracy | ±0.5% of span ±1 digit |
| Display | 4-digit LED/LCD display |
| Output Type | Relay, SSR, or 4-20mA analog |
| Control Modes | Manual, Auto, Self-tuning PID |
| Alarm Output | Dual configurable alarms |
| Sampling Time | 0.5 sec |
| Power Supply | 85–265V AC, 50/60Hz |
| Operating Temperature | 0–50°C |
| Storage Temperature | -10–70°C |
| Panel Cutout Size | 72 × 72 mm |
| Protection Class | IP20 (panel mounted) |
| Mounting | Flush panel mount |
| Dimensions (HxWxD) | 76 × 76 × 110 mm |
| Weight | 250 g |
| Applications | Temperature/process control in industrial, laboratory, and automation systems |
