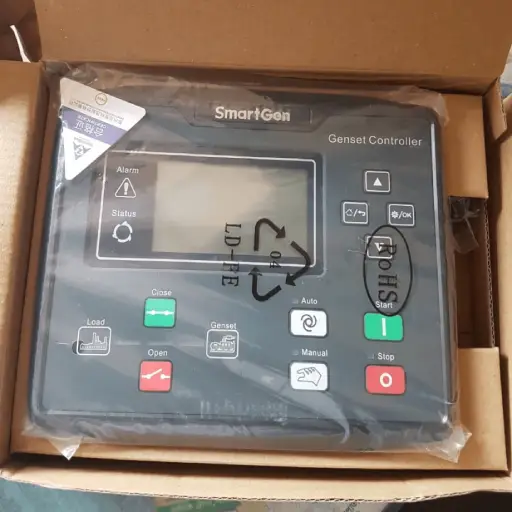

HGM6110 Smartgen

Name: Smartgen 6110 Automatic Grnerator Controller.

Specification:

Smartgen HGM6110
Condition- New
Operating Voltage: DC8. 0V to 35. 0V, Continuous Power Supply
Power Consumption: <3W
Alternator Input Range
3-Phase 4 Wire: 15V AC – 360 V AC (ph-N)
2-Phase 3 Wire: 15V AC – 360 V AC (ph-N)
Single phase 2 wire: 15V AC – 360 V AC (ph-N)
Alternator Input Frequency: 50Hz – 60 Hz at rated engine speed
Magnetic Input Range: +/- 0. 5 V to 70 V Peak
Magnetic Input Frequency: 10,000 Hz (max) at rated engine speed.
Start Relay Output: 7 Amp DC at supply voltage.
Fuel Relay Output: 7 Amp DC at supply voltage.
Auxiliary Relay Output (1-4):
(1)7 Amp DC at supply voltage,
(2)7A 250VAC free voltage contact,
(3,4)16A 250VAC free voltage contact.
Dimensions: 200mm x 144mm x 50mm
Panel cutout: 184mm x 139mm
Operating Temperature Range: -25 to +70°C
Storage Condition
Temperature: (-30 – 80)°C
C. T. Burden: 2. 5VA
C. T. Secondary: 5A
Warranty:
Price- Negotiable.
