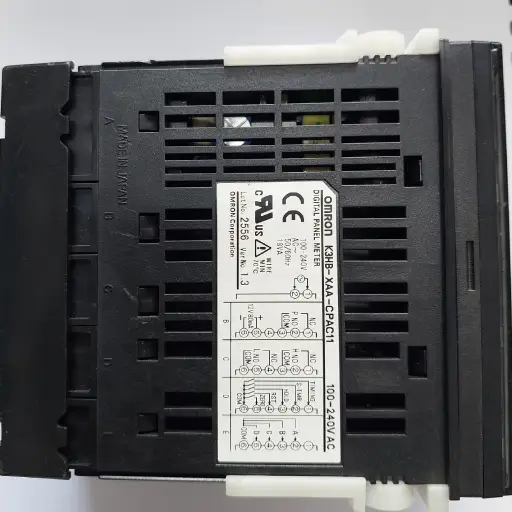

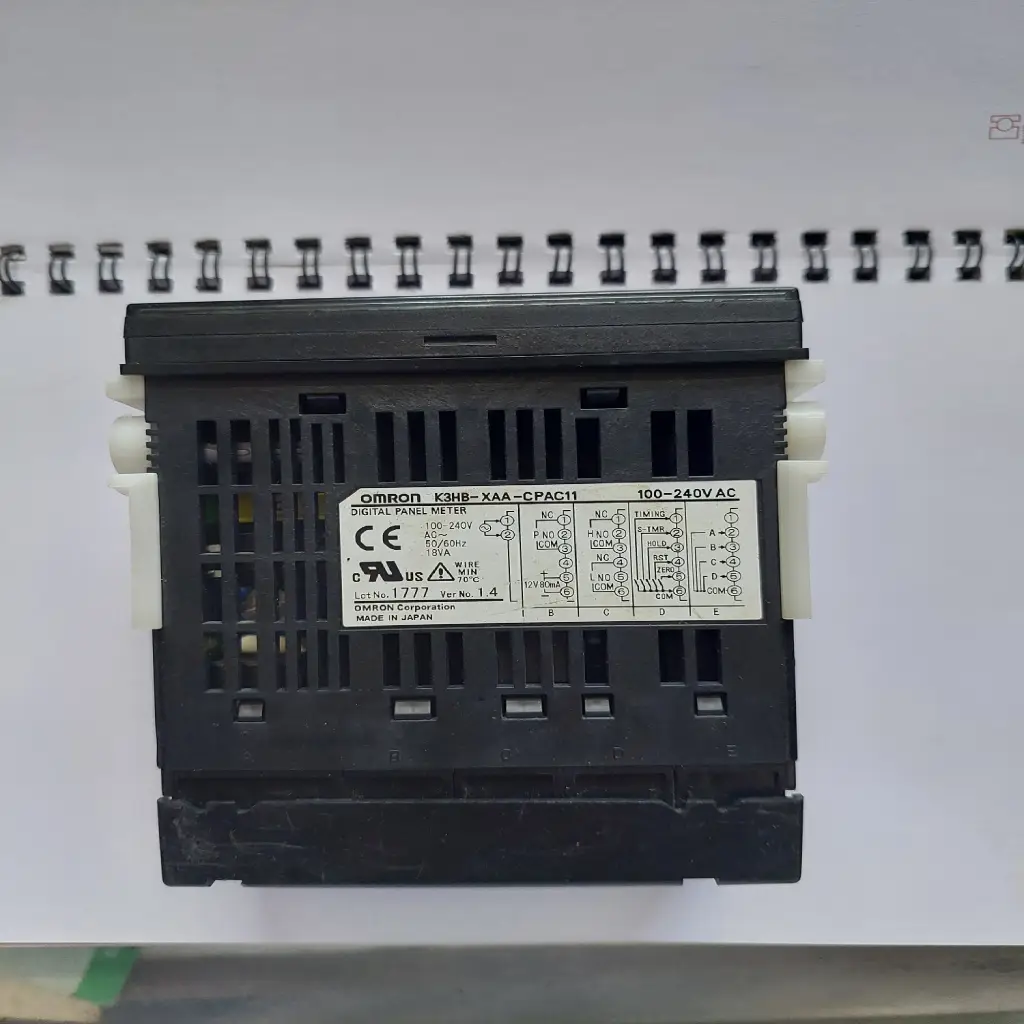

K3HB-XAA-CPAC11. DIGITAL PANEL METER. Brand-OMRON. Supply-220 VAC.50/60Hz.
Input- AC Currant. Output- Relay. Condition- Used, Fresh. Price- Negotiable.
Product Description:- Omron K3HB-XAA-CPAC11 Digital Panel Meter
The Omron K3HB-XAA-CPAC11 Digital Panel Meter is a precision AC current monitoring and indication device engineered for industrial automation and electrical panel applications. Designed within Omron’s reliable K3HB series, this model measures alternating current signals directly from current transformers (CTs) and converts them into a clear digital display for real-time load monitoring and equipment protection. It is widely used in motor control panels, power distribution boards, generator systems, and machine load supervision where accurate current indication is critical.
The unit features a large, high-brightness 5-digit LED display that remains clearly visible from long distances, allowing operators and maintenance personnel to quickly assess operating conditions. With programmable scaling, the meter converts CT secondary signals into actual current values (Amps), eliminating the need for manual calculations. This simplifies installation and improves monitoring accuracy in industrial environments.
The K3HB-XAA-CPAC11 includes two independent relay outputs that can be configured as high or low alarms. These relays enable automatic control actions such as overload protection, warning indication, fan or pump activation, or emergency shutdown when current exceeds predefined limits. As a result, the meter not only displays electrical load but also functions as a protective monitoring device that helps prevent motor damage and equipment failure.
Additional built-in functions such as peak hold, hysteresis setting, and zero adjustment enhance measurement stability and reduce nuisance alarms. The rugged panel-mount design with protective front construction ensures reliable operation in harsh factory conditions, including vibration and electrical noise. Parameter setup is straightforward using front keys, reducing commissioning time for technicians.
Ideal for industrial electrical systems, textile machinery, compressors, conveyors, and power monitoring panels, the Omron K3HB-XAA-CPAC11 offers dependable performance, flexible alarm control, and precise AC current measurement in one compact digital panel meter solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | K3HB-XAA-CPAC11 |
| Product Type | AC Current Digital Panel Meter |
| Brand | Omron |
| Input Signal | AC Current (via Current Transformer – CT input) |
| Display | 5-digit, 7-segment high-intensity LED |
| Display Color | Red, Green |
| Measurement Range | Programmable scaling according to CT ratio |
| Accuracy | Approx. ±0.1% Full Scale |
| Sampling/Response | High-speed measurement response |
| Alarm Outputs | 2 × Relay outputs (Hi/Lo configurable) |
| Relay Contact Rating | 250 VAC, 3 A (resistive load typical) |
| Functions | Scaling, peak hold, hysteresis, zero shift |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Mounting | Panel mounting (standard cutout 48x96mm) |
| Front Protection | IP54 (when properly installed) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | −25°C to 65°C |

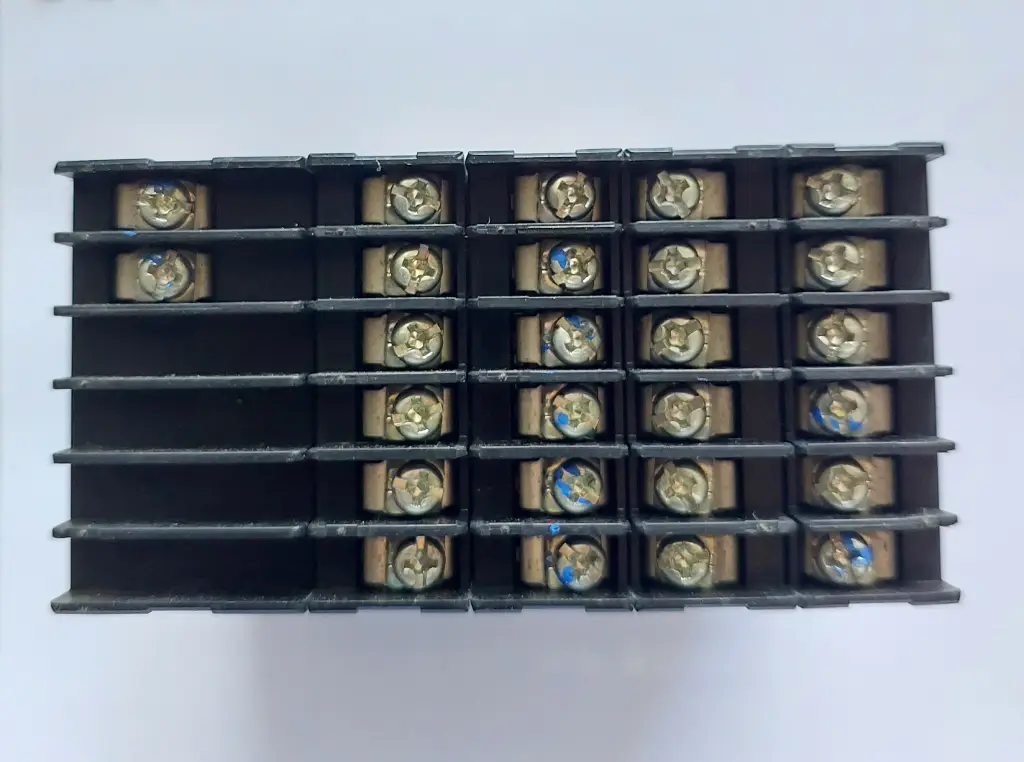

| Wiring | Screw terminal connections |
| Application | Motor load monitoring, power panel protection, generator current indication |
Catalogue Information:-
| Item | Details |
|---|---|
| Product Name | Omron AC Current Digital Panel Meter |
| Model Number | K3HB-XAA-CPAC11 |
| Category | Digital Ammeter / Process Indicator |
| Input Type | AC Current (CT Signal Input) |
| Output Type | Dual Relay Alarm Output |
| Display Type | LED Digital Display |
| Key Features | Overload alarm, load monitoring, programmable scaling |
| Typical Uses | Motor protection, generator monitoring, electrical distribution panels |
| Installation | Control panel front mounting |
| Industrial Applications | Automation panels, textile machines, compressors, pumps |
| Brand | Omron Automation |
