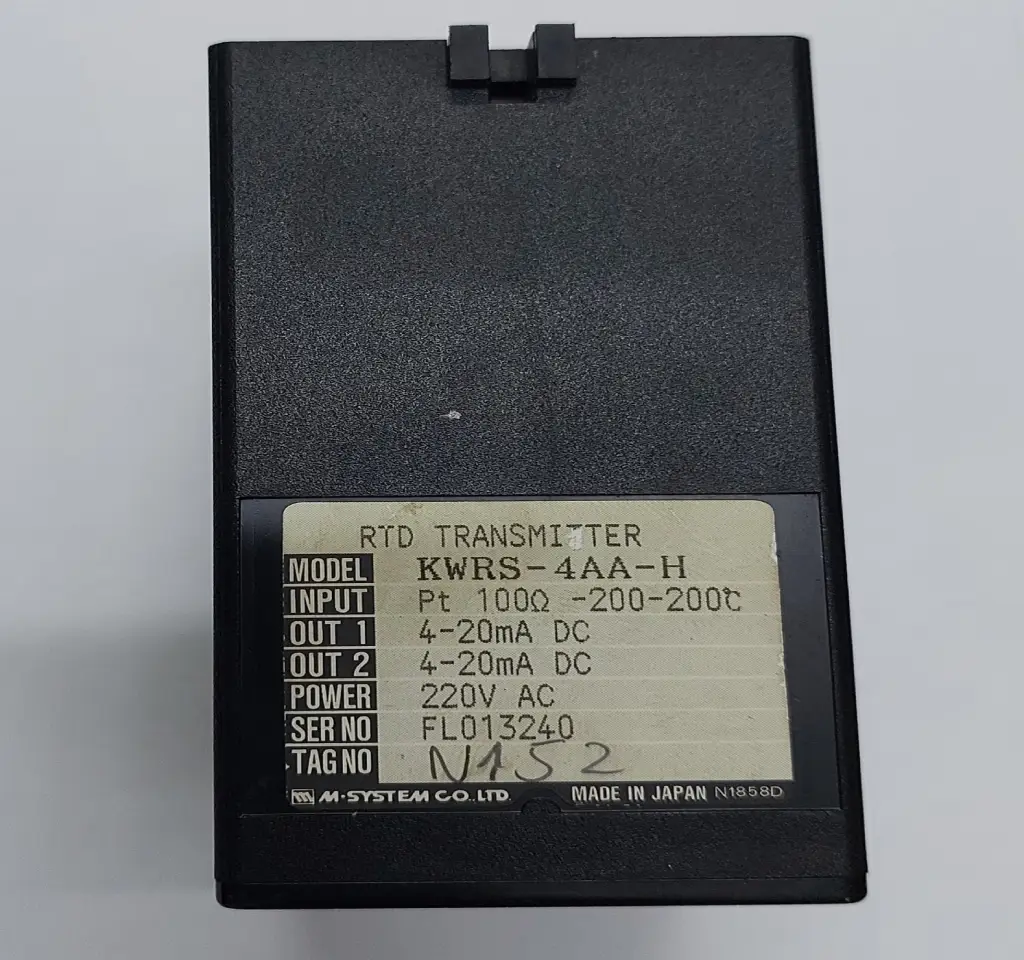

KWRS-4AA-H. RTD TRANSMITTER. Brand-M-SYSTEM. MODEL-KWRS-4AA-H. Input-Pt 100 ohms.
Range-200-200c. Output-2 x 4-20ma DC. Power-220VAC. Made in- Japan. Used, Fresh & Good Condition.
(Ship Breaking) Price-Negotiable.
KWRS-4AA-H RTD Transmitter – Product Description
The KWRS-4AA-H RTD Transmitter is a high-performance, precision temperature transmitter designed to convert resistance temperature detector (RTD) sensor signals into a standard 4-20 mA output, ensuring accurate and reliable temperature measurement in industrial applications. Engineered for durability and stability, this is ideal for process control, HVAC systems, chemical processing, power plants, and other industrial environments requiring precise temperature monitoring.
This RTD transmitter supports a wide range of RTD sensors, including Pt100 and Pt1000, providing flexibility for diverse temperature measurement needs. Its advanced circuitry ensures excellent linearization, low signal drift, and high accuracy even in harsh operating conditions. The transmitter’s compact and rugged design allows for easy installation in field or DIN rail configurations, while its robust housing provides protection against dust, moisture, and vibration, extending the product’s operational life.
The KWRS-4AA-H features user-friendly calibration and configuration, simplifying setup and reducing maintenance time. It is designed to deliver consistent 4-20 mA output compatible with most data acquisition systems, programmable logic controllers (PLC), and distributed control systems (DCS). With its exceptional stability, high resolution, and fast response time, this RTD transmitter enhances process efficiency, safety, and reliability.
Optimized for SEO and industrial buyers, this RTD transmitter provides a cost-effective solution without compromising performance, making it a preferred choice for engineers, technicians, and facility managers. Whether you require precise temperature measurement for critical processes or routine monitoring, the KWRS-4AA-H RTD Transmitter delivers dependable performance and long-term reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Type | RTD (Pt100 / Pt1000) |
| Temperature Range | -200°C to 600°C (depends on RTD type) |
| Output Signal 1 | 4–20 mA, 2-wire |
| Output Signal 2 | 4–20 mA, 2-wire |
| Supply Voltage | 220 V AC |
| Response Time | ≤ 1 second |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Load Resistance | 0–600 Ω |
| Housing Material | Aluminum / Polycarbonate (depending on model) |
| Mounting | DIN rail / Panel mount |
| Protection Rating | IP65 / NEMA 4X |
| Electrical Connection | Screw terminals |
| Calibration | Factory calibrated, field adjustable |
| Weight | 150–200 g |
