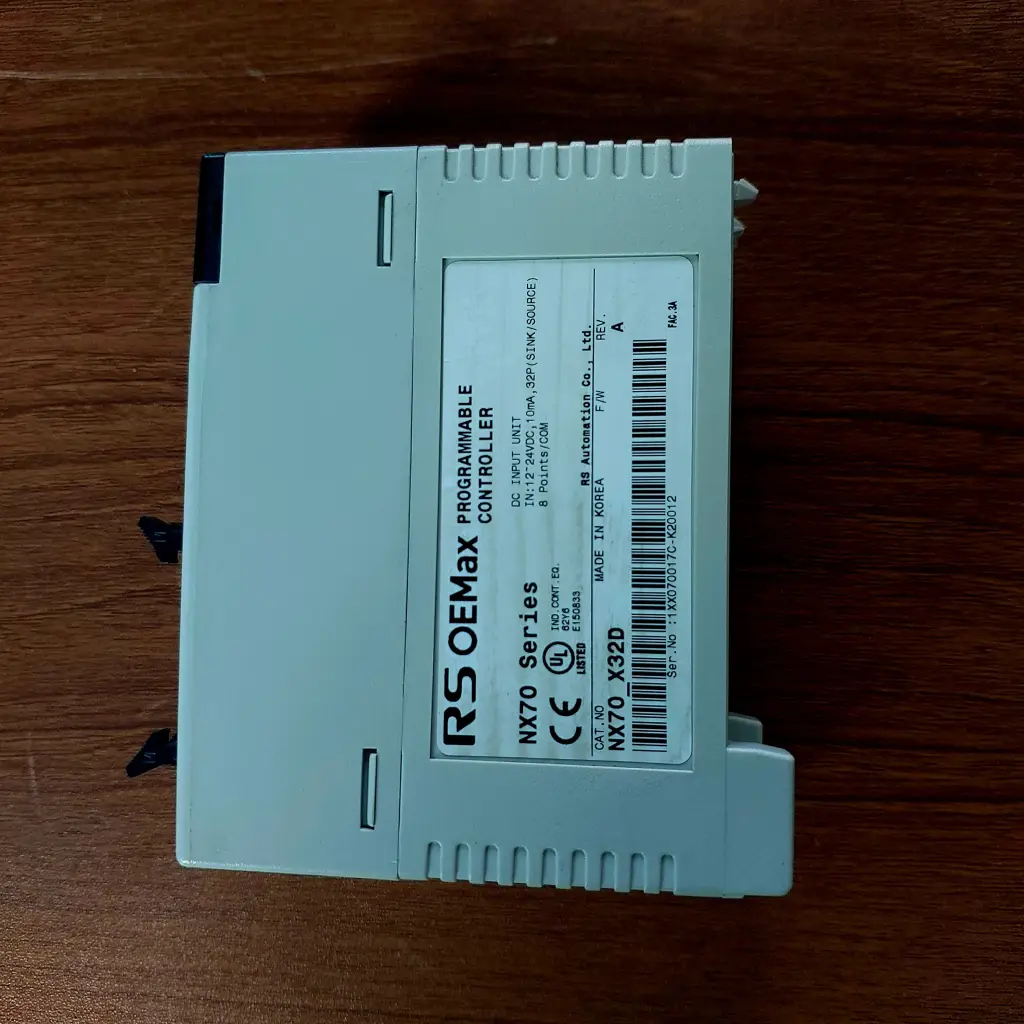

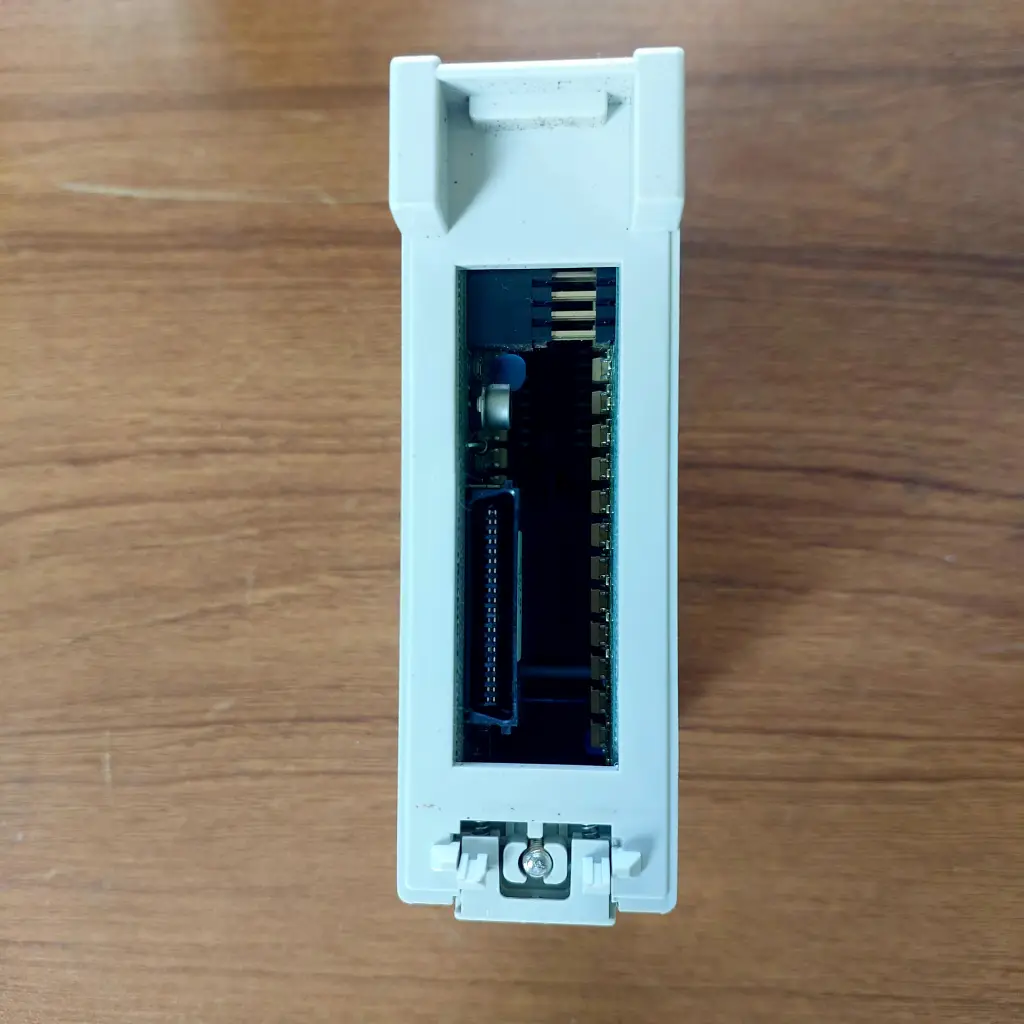

Product Description of NX70 X32D DC INPUT UNIT
The NX70 X32D RS OEMAX DC Input Unit is a high-performance industrial digital input module designed for reliable signal acquisition in PLC and automation control systems. Built for demanding factory environments, this module accepts a wide 12–24 VDC input range, making it compatible with most industrial sensors, push buttons, proximity switches, limit switches, and safety interlocks. With 32 input channels arranged in 8-point groups per common (COM), the unit offers flexible wiring and efficient panel organization, allowing system integrators to simplify installation and reduce field wiring complexity.
Supporting both sink and source (NPN/PNP) wiring configurations, the NX70 X32D adapts easily to various control architectures and international sensor standards. This dual-mode compatibility eliminates the need for additional converters or interface relays, saving space, installation time, and maintenance cost. Each channel is designed for stable low-current signal detection (approx. 10 mA), ensuring precise input recognition while minimizing power consumption and heat generation inside the control cabinet. Clear channel grouping and organized terminal layout help technicians troubleshoot quickly, improving system uptime and maintenance efficiency.
Its compact, panel-friendly design allows seamless integration into NX70 PLC racks and compatible automation systems. The module enables real-time monitoring of field devices and supports dependable machine operation by delivering accurate status signals to the controller.
Whether used in new automation installations or retrofit projects, the NX70 X32D DC Input Unit provides dependable performance, wiring flexibility, and long service life. It is an ideal solution for engineers and system builders seeking a cost-effective, industrial-grade digital input interface that balances durability, compatibility, and operational efficiency in modern control environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | NX70 X32D |
| Brand | RS OEMAX |
| Module Type | Digital DC Input Unit |
| Input Voltage Range | 12–24 VDC |
| Input Current | Approx. 10 mA per channel |
| Total Input Points | 32 Points |
| Channel Grouping | 8 Points per Common (COM) |
| Wiring Method | Sink / Source (NPN / PNP) Compatible |
| Signal Type | Digital ON/OFF Input |
| Mounting | PLC Rack / Panel Mount (NX70 Series Compatible) |
| Application | Industrial Automation & Control Systems |
| Indicator | Channel Status Indication (Input LEDs) |
| Isolation | Industrial electrical noise immunity design |
| Power Consumption | Low power design |
| Operating Environment | Industrial indoor control panels |
Catalogue
| Attribute | Details |
|---|---|
| Product Name | NX70 X32D DC Input Module |
| Category | PLC I/O Modules |
| Series | NX70 Series |
| Manufacturer | RS OEMAX |
| Input Type | Digital DC |
| Voltage Rating | 12–24 VDC |
| Input Points | 32 Channels |
| Configuration | 8 Points per COM |
| Wiring Support | NPN / PNP (Sink/Source) |
| Typical Applications | PLC Panels, Machine Automation, Packaging Lines, Conveyors, Factory Control |
| Compatibility | Industrial Sensors, Push Buttons, Limit Switches, Proximity Sensors |
| Installation | Control Panel / PLC Rack |
| Keywords | NX70 X32D, RS OEMAX input module, 32 point DC input module, PLC digital input card, 24VDC PLC input module, industrial automation I/O module |
