POG 9 DN 192 Incremental Encoder – Product Description
The POG 9 DN 192 Incremental Encoder is a rugged, high-precision rotary feedback device designed for demanding industrial motion control applications. Built for reliability in harsh environments, this encoder delivers accurate speed and position feedback for motors, gearboxes, cranes, conveyors, rolling mills, packaging machines, and heavy automation systems. With a resolution of 192 pulses per revolution (PPR), it ensures stable signal output and consistent performance for monitoring rotational movement and controlling machine processes.

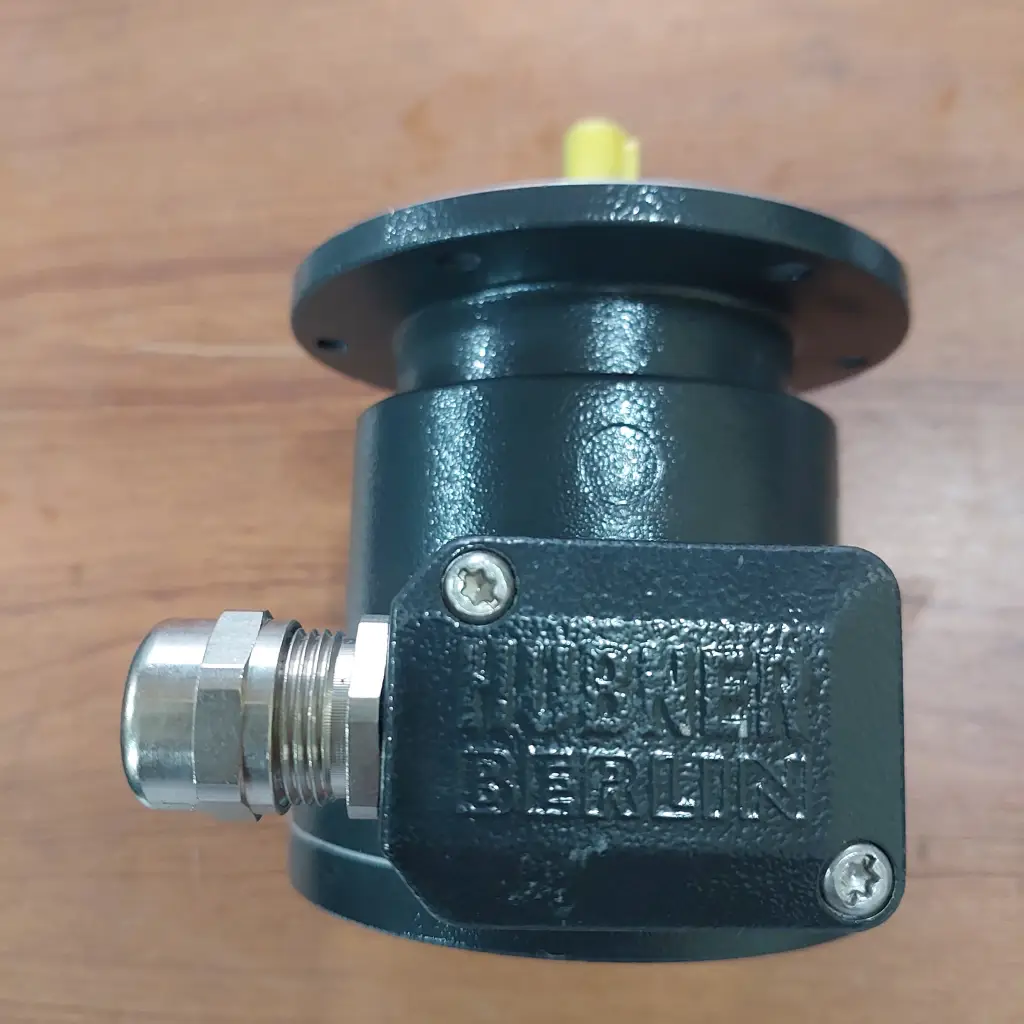

Engineered with a robust metal housing and industrial-grade bearings, the POG 9 DN 192 is capable of withstanding vibration, dust, and mechanical shock commonly found in steel plants, cement factories, marine equipment, and material handling systems. Its solid shaft construction and secure flange mounting enable easy installation on AC or DC motors while maintaining reliable alignment and long service life. The encoder generates clean incremental A and B channel signals (with optional index Z pulse) that are compatible with PLCs, VFDs, motion controllers, and digital counters.
The unit operates with excellent electrical stability and noise immunity, providing dependable feedback even in high electromagnetic interference environments. The durable sealing system protects internal components from contaminants, ensuring dependable performance in continuous duty cycles. Because of its heavy-duty design, the encoder is widely used in speed measurement, position tracking, and closed-loop control systems where precision and repeatability are essential.
Thanks to its maintenance-friendly construction and high operational reliability, the incremental encoder helps reduce downtime and improves automation efficiency. It is an ideal solution for industrial automation engineers seeking accurate motor feedback, improved process control, and long-term operational stability in demanding applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Encoder Type | Incremental Rotary Encoder |
| Model | POG 9 DN 192 |
| Resolution | 192 Pulses Per Revolution (PPR) |
| Output Signals | A, B channels (optional Z index) |
| Output Type | Push-Pull / HTL (industrial standard) |
| Supply Voltage | 10 – 30 V DC |
| Shaft Type | Solid Shaft |
| Shaft Diameter | 11 mm (typical industrial standard) |
| Maximum Speed | Up to 6000 RPM |
| Protection Class | IP65 |
| Operating Temperature | -20°C to +85°C |
| Housing Material | Die-cast metal housing |

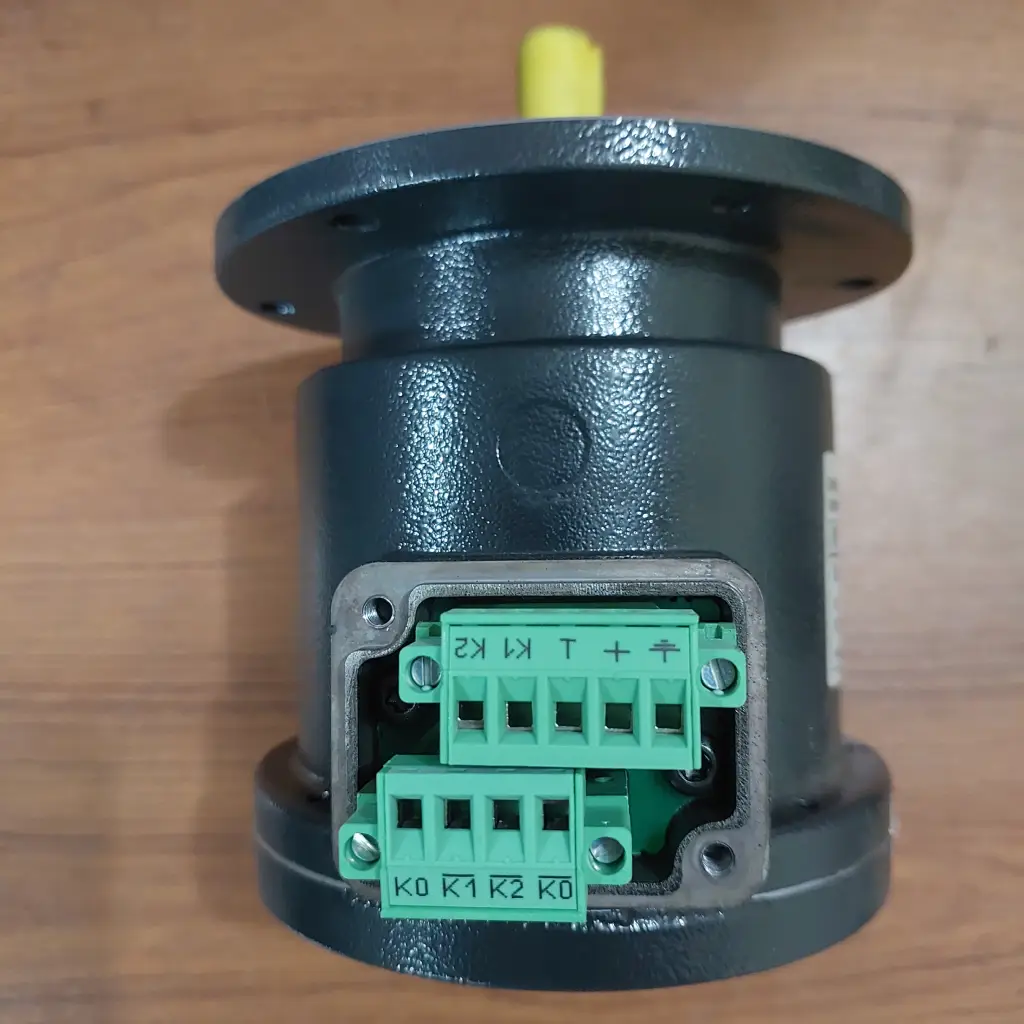

| Connection | Terminal box / Industrial cable gland |

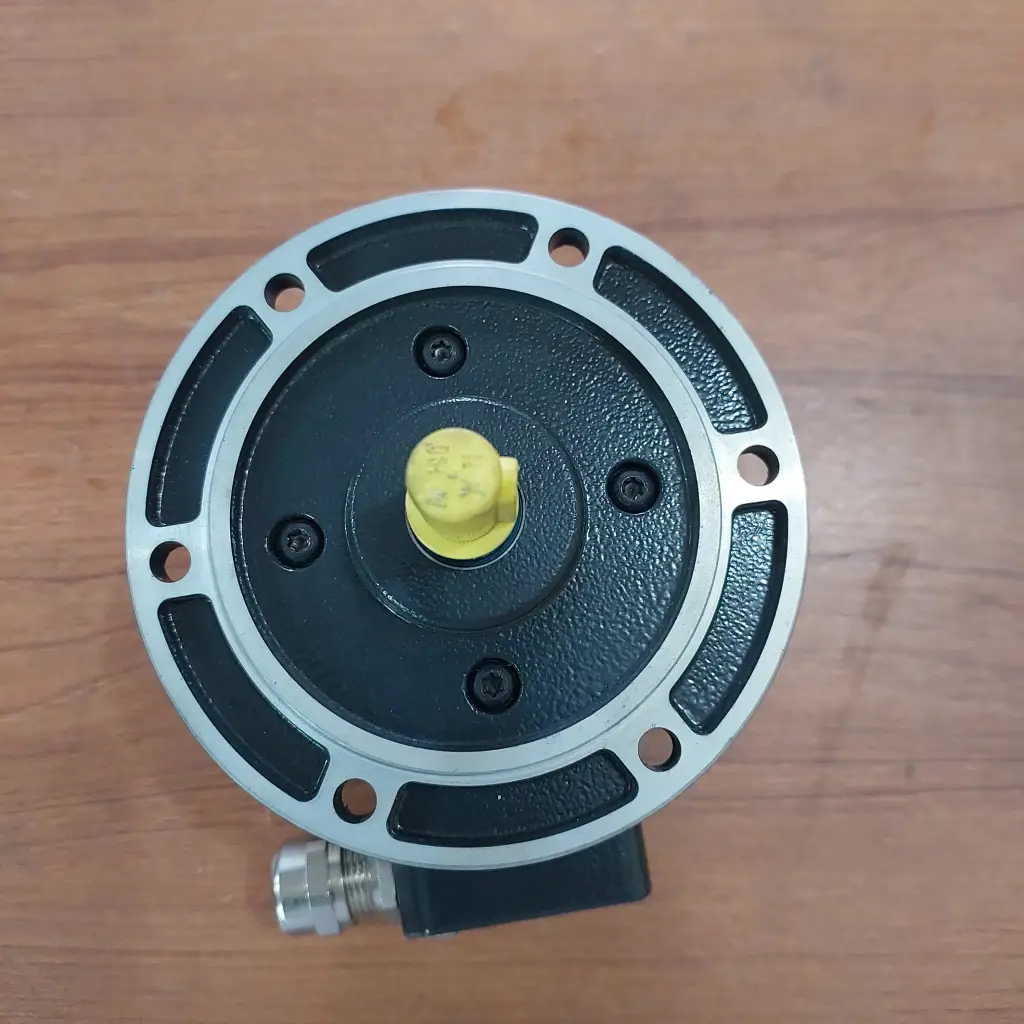

| Mounting | Flange mounting |
| Direction Detection | Yes (Quadrature signal) |
| Noise Immunity | High EMI resistance |
| Application | Motor feedback, speed monitoring, automation control |
Catalogue Data Table (Website Ready)
| Feature | Details |
|---|---|
| Product Name | POG 9 DN 192 Incremental Encoder |
| Category | Industrial Encoders / Motion Feedback Sensors |
| Brand Compatibility | Suitable for PLC, VFD, Servo & Motion Controllers |
| Function | Speed measurement & position feedback |
| Output Format | Quadrature Incremental Signals |
| Industrial Use | Steel mill, crane, conveyor, packaging machine |
| Installation | Motor shaft or gearbox shaft mounting |
| Durability | Heavy-duty industrial construction |
| Maintenance | Low maintenance, long service life |
