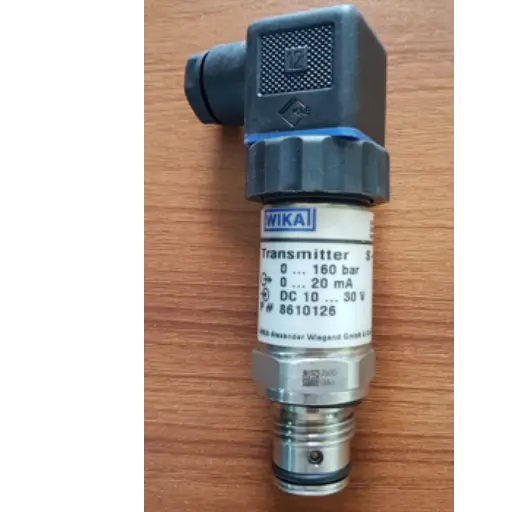

Overview of WIKA 8610126 Pressure Transmitter
The WIKA 8610126 pressure transmitter delivers stable and accurate pressure monitoring for demanding industrial processes. Designed in Germany and manufactured to strict quality standards, this transmitter continuously converts process pressure into a reliable 4–20 mA analog signal, allowing operators to monitor system conditions in real time. As a result, engineers can quickly detect abnormal pressure variations and protect critical equipment.
Because the device supports a wide measuring range of 0–160 bar, it works effectively in hydraulic systems, compressors, pumping stations, water treatment facilities, and heavy machinery. Moreover, the sensor element maintains strong repeatability, so readings remain consistent even during fluctuating load conditions. The transmitter also tolerates vibration and temperature changes, which makes it suitable for factory floors and outdoor installations alike.
In addition, its compact stainless-steel construction resists corrosion and mechanical stress. Therefore, maintenance teams spend less time on replacement and calibration. The transmitter integrates easily with PLC, DCS, and SCADA systems, enabling smooth plant automation and improving operational safety.
Installation Flexibility & Long-Term Reliability
The WIKA model 8610126 operates with a 10–30 VDC power supply, so it connects directly to most industrial control panels without requiring additional converters. Furthermore, the two-wire loop design reduces wiring complexity and minimizes installation cost. Technicians can mount it in new systems or retrofit it into existing pipelines with minimal modification.
Meanwhile, the sensor’s fast response time improves process control efficiency, especially in hydraulic pressure monitoring and closed-loop automation. Consequently, operators receive immediate feedback and can adjust system parameters quickly. The transmitter also features low power consumption, which increases system stability and reduces heat generation inside panels.
Overall, the WIKA 8610126 combines precision measurement, strong durability, and easy integration. For that reason, it serves as a dependable choice for industries seeking continuous pressure monitoring and long service life.
Technical Specifications of wika8610126
| Parameter | Details |
|---|---|
| Brand | WIKA |
| Model / Type / Part No. | 8610126 |
| Device Type | Industrial Pressure Transmitter |
| Measuring Range | 0 – 160 bar |
| Output Signal | 4–20 mA (2-wire) |
| Supply Voltage | 10 – 30 VDC |
| Electrical Connection | Industrial current loop connection |
| Application | Hydraulic systems, compressors, pumps, water treatment, automation lines |
| Construction | Industrial-grade metal housing |
| Country of Origin | Germany |
Catalogue Information of wika8610126
| Feature | Information |
|---|---|
| Product Name | WIKA 8610126 Pressure Transmitter |
| Category | Industrial Instrumentation / Pressure Measurement |
| Keywords | WIKA pressure transmitter, 8610126 transmitter, 0-160 bar pressure sensor, 4-20mA pressure transmitter, industrial pressure sensor Germany |
| Industry Use | Manufacturing plants, power plants, oil & gas support systems, water processing |
| Signal Compatibility | PLC, DCS, SCADA automation systems |
| Mounting | Pipeline / hydraulic line installation |
| Power Requirement | 10–30 VDC loop powered |
| Output Type | Analog current (4–20 mA) |
| Origin | Made in Germany |
| Reliability | Continuous industrial duty operation |
